Flutter: Clean Architecture with Riverpod

Clean architecture provides a clear separation of concerns, encourages interfaces and abstractions, and facilitates changes in the dependencies without affecting the application’s core logic.

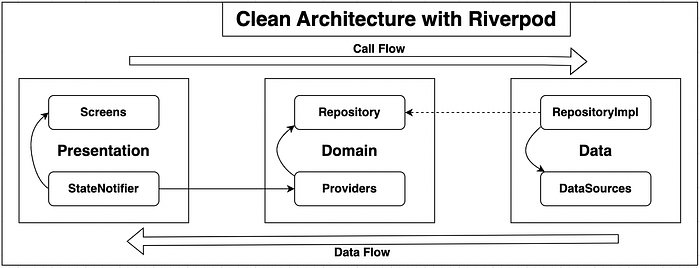

Representation of the architecture

Layers of Clean Architecture

Data

The data layer is the outermost layer of the application and is responsible for communicating with the server-side or a local database and data management logic. It also contains repository implementations.

a. Data Source

Describes the process of acquiring and updating the data. Consist of remote and local Data Sources. Remote Data Source will perform HTTP requests on the API. At the same time, local Data sources will cache or persist data.

b. Repository

The bridge between the Data layer and the Domain layer. Actual implementations of the repositories in the Domain layer. Repositories are responsible for coordinating data from the different Data Sources.

Domain

The domain layer is responsible for all the business logic. It is written purely in Dart without flutter elements because the domain should only be concerned with the business logic of the application, not with the implementation details.

a. Providers

Describes the logic processing required for the application. Communicates directly with the repositories.

b. Repositories

Abstract classes that define the expected functionality of outer layers.

Presentation

The presentation layer is the most framework-dependent layer. It is responsible for all the UI and handling the events in the UI. It does not contain any business logic.

a. Widget (Screens/Views)

Widgets notify the events and listen to the states emitted from the StateNotifierProvider.

b. Providers

Describes the logic processing required for the presentation. Communicates directly with the Providers from the domain layer.

Project Description

• main.dart file has services initialization code and wraps the root MyApp with a ProviderScope
• main/app.dart has the root MaterialApp and initializes AppRouter to handle the route throughout the application and AppTheme to provide a theme.
• services abstract app-level services with their implementations.
• The shared folder contains code shared across features.
• theme contains general styles (colors, themes & text styles)
• model contains all the Data models needed in the application.
• http is implemented with Dio.
• storage is implemented with SharedPreferences.
• Service locator patterns and Riverpod are used to abstract services when used in other layers.

Functional Programming

Clean Architecture should not be full of surprises, so we are implementing functional programming.

The core idea of the architecture:

The abstract <DataSource>is accessed from the repository implementation. Then the abstract <Repository>is accessed from the <StateNotifier>and the implementation of <StateNotifier> is accessed from the widget and how each of these layers achieves separation and scalability by providing the ability to switch implementation and make changes and test each layer separately.

For example:

final storageServiceProvider = Provider((ref) {
  return SharedPrefsService();
});

// Usage:
// ref.watch(storageServiceProvider);

• The features folder: the pattern decouples the logic required to access data sources from the domain layer. For example, the DashboardRepository abstracts and centralizes the functions required to fetch the Product from the remote.

abstract class DashboardRepository {
  Future<Either<AppException, PaginatedResponse>> fetchProducts({required int skip});
  Future<Either<AppException, PaginatedResponse>> searchProducts({required int skip, required String query});
}

The repository implementation with the DashboardDatasource:

class DashboardRepositoryImpl extends DashboardRepository {
  final DashboardDatasource dashboardDatasource;
  DashboardRepositoryImpl(this.dashboardDatasource);
  @override
  Future<Either<AppException, PaginatedResponse>> fetchProducts(
      {required int skip}) {
    return dashboardDatasource.fetchPaginatedProducts(skip: skip);
  }
  @override
  Future<Either<AppException, PaginatedResponse>> searchProducts(
      {required int skip, required String query}) {
    return dashboardDatasource.searchPaginatedProducts(
        skip: skip, query: query);
  }
}

Using Riverpod Provider to access this implementation:

final dashboardRepositoryProvider = Provider<DashboardRepository>((ref) {
  final datasource = ref.watch(dashboardDatasourceProvider(networkService));
  return DashboardRepositoryImpl(datasource);
});

And finally, accessing the repository implementation from the Presentation layer using a Riverpod StateNotifierProvider:

final dashboardNotifierProvider =
    StateNotifierProvider<DashboardNotifier, DashboardState>((ref) {
  final repository = ref.watch(dashboardRepositoryProvider);
  return DashboardNotifier(repository)..fetchProducts();
});da

Notice how the abstract NetworkService is accessed from the repository implementation. Then the abstract DashboardRepository is accessed from the DashboardNotifier and how each layer achieves separation and scalability by providing the ability to switch implementation, make changes, and test each layer separately.

Testing

The test folder mirrors the lib folder in addition to some test utilities.

state_notifier_test is used to test the StateNotifier and mock Notifier.

mocktail is used to mock dependencies.

Additionally, With clean architecture, you can replace the SharedPreferences with Hive without affecting the application's core logic. You need to modify the data access layer responsible for interacting with the data storage system.
By swapping out the SharedPreferences implementation with the Hive implementation, you can change the data storage system without affecting the rest of the application.

In this PR, we changed the implementation and test files to change the data storage system without affecting the application's core logic.

Changing the local storage from SharedPreferences to Hive to demonstrate the separation of concerns…

You can check the whole project:

GitHub - Uuttssaavv/flutter-clean-architecture-riverpod: Clean architecture in Flutter using…
